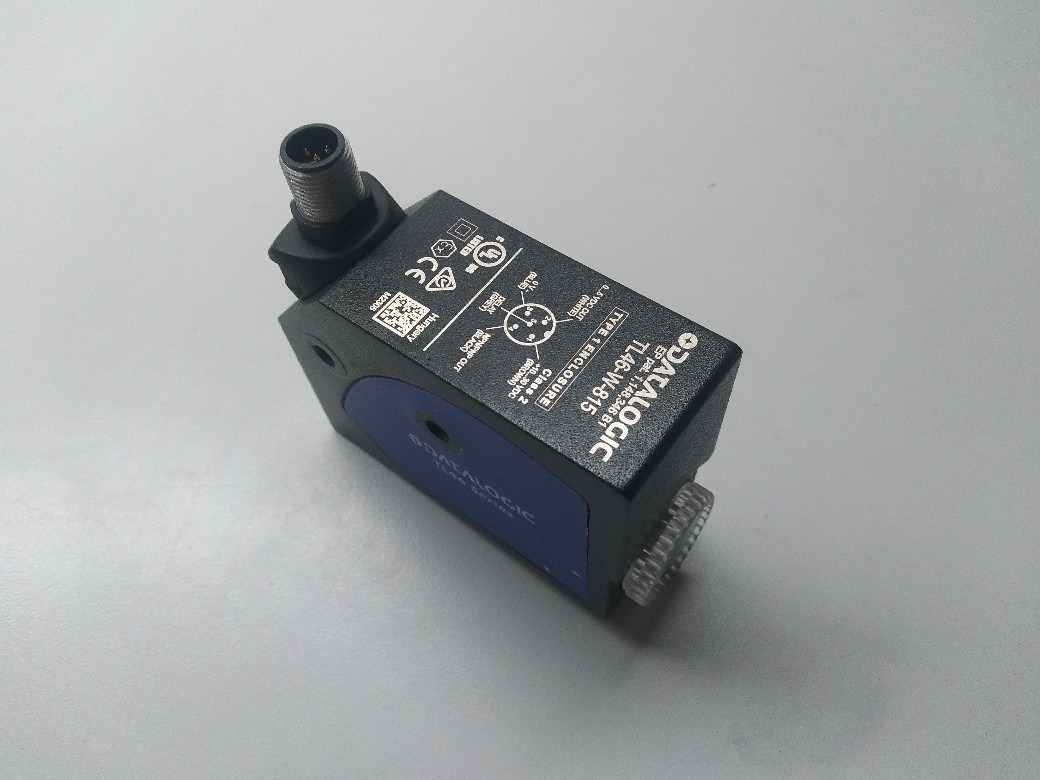

TECHNICAL FEATURES
Detection properties
| Nominal sensing distance | 12mm | |
| Spot dimension | 0,8 x 4mm | |
| Sensitivity adjustment | Teach-in | |
Application
| Function Principle | Contrast mark detection | |
| Description | Standard case – vertical spot | |
| Optic position | axial | |
| Functions | Contrast mark detection | |
Outputs
| Output type | NPN/PNP – IO-LINK | |
| Switching frequency | 15kHz | |
| Response time | 0,02 (25kHz low jitter) | |
Electrical data
| Operating Voltage | 10…30VDC | |
| No-Load supply current | ≤ 50mA | |
| Load current | ≤100mA | |
| Output voltage drop | ≤2V | |
| Max ripple content | ≤ 2Vpp | |
| LED indicators | Yellow (output state) Green (Ready) orange (delay or keylock) | |
| Short-circuit protection | YES | |
| Reverse Polarity Protection | Yes | |
| Emission | LED RGB | |
| Interference to external light | according to EN 60947-5-2 : 2020 | |
| Impulsive Overvoltage Protection | Yes | |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing | |
| Contact resistance | 500 Vac 1 min., between electronics and housing | |
Mechanical data
| Dimensions | 32x60x82 | |
| Housing Material | Metal – Aluminium / Glass | |
| Connections | M12 plug | |
| Active Head Material | Glass | |
| Storage temperature | – 20°C…+70°C | |
| Material | ||
| Diameter/Dimension | Cubic | |
Test/Approvals
| Approvals | CE cULus | |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) | |
Generical Data
| Dimensions | 32x60x82 | |
| Operating Temperature | – 10°C…+ 55°C | |
| Mechanical Protection | IP67 | |
