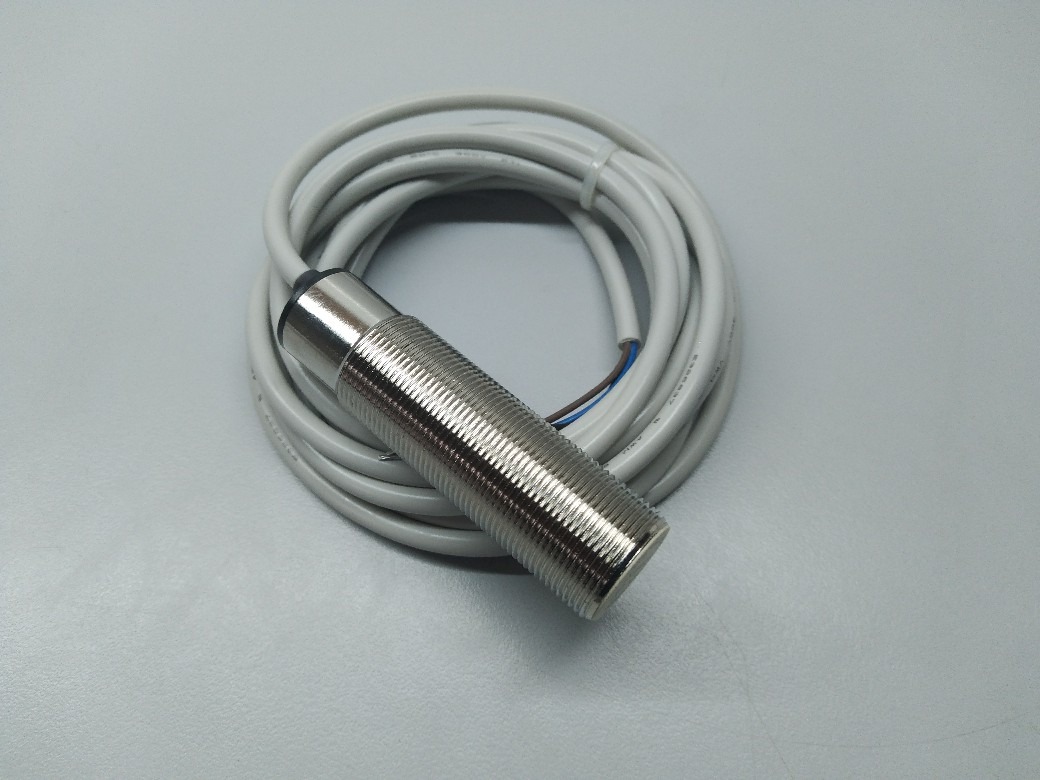

Sensor inductivoIS-18-A1-03 Inductivo 18mm (SI18-C5 PNP NO)
$43.502 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial
Sin existencias
| Nominal sensing distance |
5mm |
| Operanting distance |
0…4,05mm |
| Standard target |
18x18mm FE360 |
| Correction Factor |
copper: 0,2…0,5 / aluminium: 0,3…0,5 / brass: 0,4…0,6 / stainelss steel: 0,7…0,9 |
| Repeat Accuracy |
< 3% (UB 24V Ta=23°C ±5°C) |
| Hysteresis |
< 10% |
| Description |
M18 standard flush mount |
| Functions |
Proximity |
| Output type |
PNP |
| Output Function |
NO |
| Switching frequency |
1kHz |
| Response time |
0,5 |
| Operating Voltage |
10…30Vdc |
| No-Load supply current |
≤ 10mA |
| Load current |
200mA |
| Output voltage drop |
≤ 1,8V @100mA |
| Max ripple content |
≤ 10% |
| LED indicators |
Yellow LED output state |
| Time delay before availability |
≤ 50ms |
| Short-circuit protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Emission |
≥100kHz |
| Protection against inductive loads |
Yes |
| Mounting |
Shielded |
| Dimensions |
Ø18×70 |
| Housing Material |
Nickel-plated brass |
| Connections |
2m PVC Cable |
| Active Head Material |
LCP |
| Tightening torque |
20Nm |
| Material |
Nickel-plated brass |
| Diameter/Dimension |
M18 |
| Approvals |
CE cULus ECOLAB DIVERSEY |
| Supplied Accessories |
2 nuts M18x1 |
| Dimensions |
Ø18 / L = 70mm |
| Operating Temperature |
-25°C…+60°C |
| Mechanical Protection |
IP67 |
